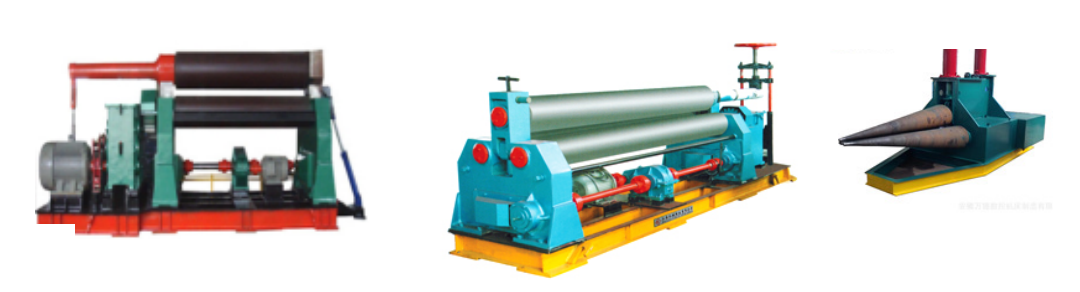

Q11 Symmetric Three roll Plate Rolling Machine
Send Email
Performance and purpose of the equipment
This equipment is a three roll symmetrical up-regulated plate bending machine, which is used to roll metal plates of certain thickness into cylindrical, arc and other parts at room temperature. Its working principle is rotary bending deformation. It is a necessary equipment in the machinery and equipment manufacturing industry of chemical industry, cement, shipbuilding, boiler, aviation, water conservancy, power transmission and transformation tower, etc.
Technical parameters of W11 three roll plate bending machine:
Specification and model | Maximum roll thickness(mm) | Maximum roll width(mm) | Yield limit of sheet metal(mpa) | Coil speed | Minimum roll diameter when fully loaded(mm) | Upper roller diameter (mm) | Lower roller diameter (mm) | Center distance between two rollers(mm) | Main motor power（KW) | machine weight (T) | External dimensions(mm) |
6×1500 | 6 | 1500 | 245 | 5.5 | 380 | 180 | 160 | 210 | 5.5 | 2.6 | 3310×1050×1330 |
6×2000 | 6 | 2000 | 245 | 5.5 | 380 | 180 | 160 | 220 | 5.5 | 3.1 | 3810×1050×1330 |
8×2000 | 8 | 2000 | 245 | 5.6 | 450 | 190 | 170 | 260 | 7.5 | 4.1 | 3810×1050×1330 |
8×2500 | 8 | 2500 | 245 | 5.5 | 500 | 240 | 200 | 310 | 11 | 6.7 | 4550×1350×1610 |
12×2000 | 12 | 2000 | 245 | 5.5 | 500 | 240 | 200 | 310 | 11 | 6.3 | 4050×1350×1610 |
12×2500 | 12 | 2500 | 245 | 5.8 | 650 | 260 | 220 | 340 | 15 | 7.1 | 4550×1350×1610 |
12×3000 | 12 | 3000 | 245 | 6 | 750 | 300 | 240 | 360 | 22 | 12 | 5550×1400×1700 |
16×2000 | 16 | 2000 | 245 | 5.8 | 650 | 260 | 220 | 340 | 15 | 6.8 | 4050×1350×1610 |
16×2500 | 16 | 2500 | 245 | 6 | 750 | 300 | 240 | 360 | 22 | 8.5 | 5050×1400×1700 |
16×3200 | 16 | 3200 | 245 | 5 | 900 | 340 | 280 | 440 | 30 | 15 | 5800×1600×1900 |
20×2000 | 20 | 2000 | 245 | 6 | 750 | 300 | 240 | 360 | 22 | 7.5 | 4550×1440×1700 |
20×2500 | 20 | 2500 | 245 | 5 | 850 | 340 | 280 | 440 | 30 | 14 | 5100×1600×1900 |
40×2500 | 40 | 2500 | 245 | 4.5 | 1400 | 500 | 400 | 600 | 45 | 32 | 6100×2050×2100 |
40×3000 | 40 | 3000 | 245 | 4.5 | 1600 | 500 | 425 | 650 | 55 | 36 | 6900×2300×2250 |
Note: If the parameters in this table are inconsistent with the machine tool data, the actual data of the machine tool shall prevail. The Company reserves the right of final interpretation.
