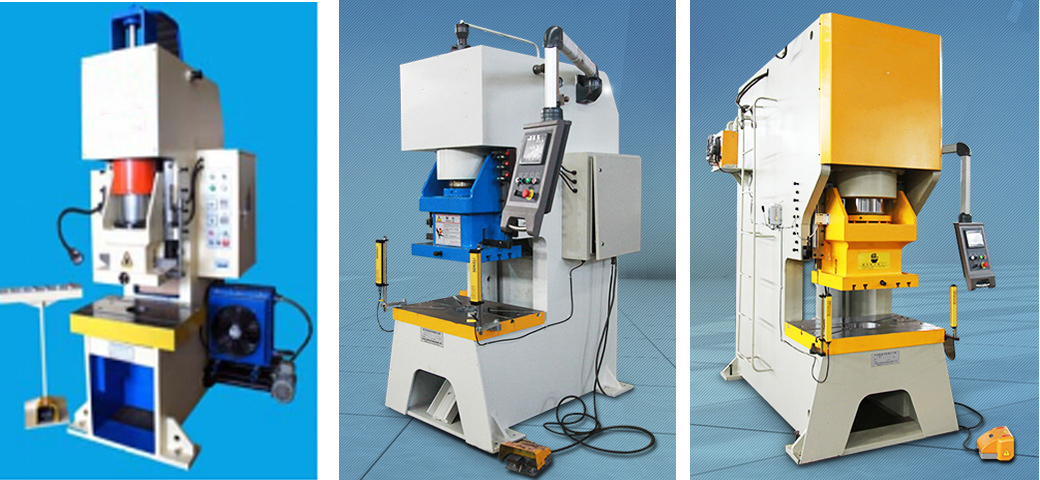

Y27Y Hydraulic Quick Press

Send Email

　　Performance Characteristics:

　　This series of machine tool are applicable to blanking, stretch, and pressing processes of plastic materials, such as blanking, bending, flanging, sheet stretch and fine blanking of sheet metal and cold extruding of metal parts. They are also applicable to calibrating and press-fitting of grinding wheel for its forming, and compression molding of plastic products and powder products.

　　This machine uses hydraulic transmission mode, with advantages of hydraulic machine and mechanical press, able to alter the pressing power at random, without generating overload, and also able to meet the pressure maintaining and time delay requirements of the actions during pressing process. For the purpose of realizing slider fast air-way down and fast back stroke, speed up cylinder is used for the machine tool, which automatically changes into slow work upon contacting the machine parts. Therefore, the discharge capacity of the necessary oil pump, motor capacity and noise are all reduced.Photo-electric safety device can be installed in the front of workbench, to form protective barrier above the workbench, in order to ensure personal safety of the operator. The integrated button on machine tool can realize three kinds of operation modes: adjustable, semi-automatic and automatic. To sum up, this machine has advantages of novel structure, reliable performance, complete functions and high production efficiency, making it a replacement product for mechanical press.

　　Main Technical Parameters of Y27Y Hydraulic Quick Press

Specifications and Model		Company	25	40	50	63	80	100	125	160	200	250	300
Nominal Pressure		KN	250	400	500	630	800	1000	1250	1600	2000	2500	3000
Maximum Working Pressure of Liquid		mpa	22	21	21	20	21.5	22.5	25	25	25	25	25
Maximum Journey of Slider		mm	130	130	130	150	180	180	220	220	220	220	200
Slider Working Times		1/min	10-50	10-50	10-50	10-40	10-40	10-40	10-30	10-30	10-30	10-30	10-30
Maximum Shut Height		mm	315	320	320	445	470	470	520	520	520	520	700
Journey Adjustment		mm	130	130	130	150	180	180	220	110	110	110	200
Depth of Throat		mm	210	235	235	260	310	310	350	350	400	350	350
Height of Workbench from Floor		mm	740	740	740	750	770	770	870	920	920	1020	1020
Approach Speed		mm/s	225	265	265	220	220	210	250	230	230	200	150
Work Speed		mm/s	18	14	14	18	17	14	16	10	10	6	6
Return Speed		mm/s	99	118	118	195	195	195	200	170	170	100	100
Size of Slider Undersurface	Left and Right	mm	250	320	320	440	500	500	600	600	700	680	1600
	Front and Back	mm	220	270	270	320	350	350	500	500	580	540	600
	Die Hole	mm	Φ40	Φ50	Φ50	Φ50	Φ60	Φ60	Φ60	Φ60	Φ65	Φ70	Φ70
Size of Workbench	Left and Right	mm	600	630	630	710	850	850	1000	1000	1300	1300	1700
	Front and Back	mm	400	450	450	500	600	600	650	650	740	740	750
	Pore Diameter	mm	Φ100	Φ150	Φ150	Φ150	Φ180	Φ180	Φ200	Φ200	Φ200	Φ200	Φ200
Outline dimension	Left and Right	mm	1160	1100	1100	1250	1370	1350	1600	1700	1800	1900	2000
	Front and Back	mm	1155	1260	1260	1450	1630	1630	1850	2000	2100	2200	2300
	height	mm	1900	1980	1980	2270	2500	2500	3400	3500	3600	3700	3800
Motor Power		kw	5.5/6	5.5/4	5.5/4	5.5/4	7.5/6	7.5/6	11/6	22	22	22	37
Oil Pump		m1/r	10	12	12	25 variates	40 variates	40 variates	63 variates	63 variates	80 variates	80 variates	80 variates
Machine Weight		kg	2000	2600	2800	3200	4800	5000	8500	11000	14000	22000	26000
