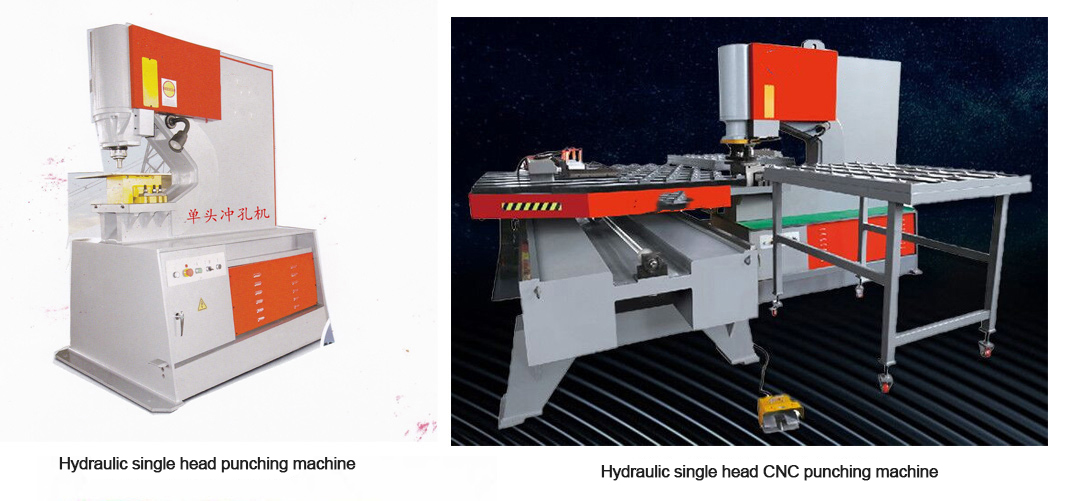

Hydraulic single head CNC punching machine
Send Email
Detailed description
The combined punching and cutting machine and mechanical profile punching and cutting machine integrate functions such as punching, cutting plate angle steel cutting machine, and profile cutting. They have the advantages of light weight, small size, and low noise, and are processing equipment for modern mechanical manufacturing industries such as metallurgy, bridges, communication, and power.
Our company's joint punching and shearing machine products adopt hydraulic transmission, which can cut, punch and die cut sheet metal, square steel, round steel, angle steel, channel steel, I-beam, and are equipped with cutting blocking devices
Technical parameters of Q35Y hydraulic multifunctional combined punching and shearing machine
Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 |
ram pressure（T） | 55 | 75 | 110 | 140 | 200 | 250 |
Maximum thickness that can be cut（mm） | 16 | 20 | 25 | 30 | 40 | 50 |
Sheet strength | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
shear angle | 7 | 8 | 8 | 8 | 9 | 9 |
One trip cutting board size (thickness x width)（mm） | 16×250 8×400 | 20×330 10×480 | 25×330 16×600 | 30×335 20×600 | 35×400 25×700 | 40×400 30×750 |
Slide stroke（mm） | 80 | 80 | 80 | 80 | 80 | 80 |
Stroke times | 8 | 8 | 8 | 6 | 10 | 10 |
throat depth（mm） | 300 | 355 | 400 | 600 | 600 | 600 |
Punching thickness
（mm） | 16 | 20 | 25 | 26 | 35 | 40 |
Maximum punching diameter（mm） | 25 | 30 | 30 | 38 | 40 | 40 |
Main motor power（KW） | 4 | 5.5 | 7.5 | 11 | 15 | 18 |
External dimensions | 1640×730×1770 | 1860×800×1900 | 2355×960×2090 | 2860×1040×2300 | 2920×1240×2350 | 3000×1440×2450 |
machine weight（kg） | 1750 | 2400 | 4800 | 6350 | 9200 | 12800 |
Note: If the parameters in this table do not match the machine tool data, the actual data of the machine tool should prevail. Our company reserves the right of final interpretation.
