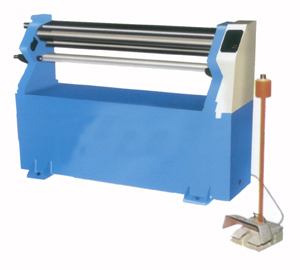

Asymmetrical Three-roll Plate Roll
Send Email
Technical Parameters of Asymmetrical Three-roll Plate Roll
Specifications and Model | Maximum Roll Plate Thickness (mm) | Maximum Roll Plate Width | Plate Yield Limit (mpa) | Minimum Roll Plate Diameter (mm) | Diameter of Upper Roll | Diameter of Lower Roll (mm) | Diameter of Side Roll | Motor Power |
W11-2×1000 | 2 | 1000 | 245 | 250 | 120 | 120 | 120 | 2.2 |
W11-2×1200 | 2 | 1200 | 245 | 250 | 120 | 120 | 120 | 2.2 |
W11-2×1500 | 2 | 1500 | 245 | 250 | 130 | 130 | 130 | 2.2 |
W11-2×2000 | 2 | 2000 | 245 | 250 | 130 | 130 | 130 | 2.2 |
W11-4×1000 | 4 | 1000 | 245 | 300 | 140 | 140 | 140 | 3 |
W11-4×1200 | 4 | 1200 | 245 | 300 | 140 | 140 | 140 | 3 |
W11-4×2000 | 4 | 2000 | 245 | 350 | 150 | 150 | 150 | 3 |
W11-6×1000 | 6 | 1000 | 245 | 350 | 140 | 140 | 140 | 3 |
W11-6×1500 | 6 | 1500 | 245 | 400 | 150 | 150 | 150 | 4 |
W11-6×2000 | 6 | 2000 | 245 | 400 | 160 | 160 | 160 | 4 |
Features:
The structure of this machine is three-roll asymmetrical, the upper roll is main transmission and the lower roll makes vertical lifting movement, in order to clamp the plate. With clip of the lower roll gear and upper roll gear, it becomes main transmission at the same time. The side rolls make inclinational lifting movement, with double functions of pre-bending and rolling round. The structure is compact and it's convenient to operate and maintain.
