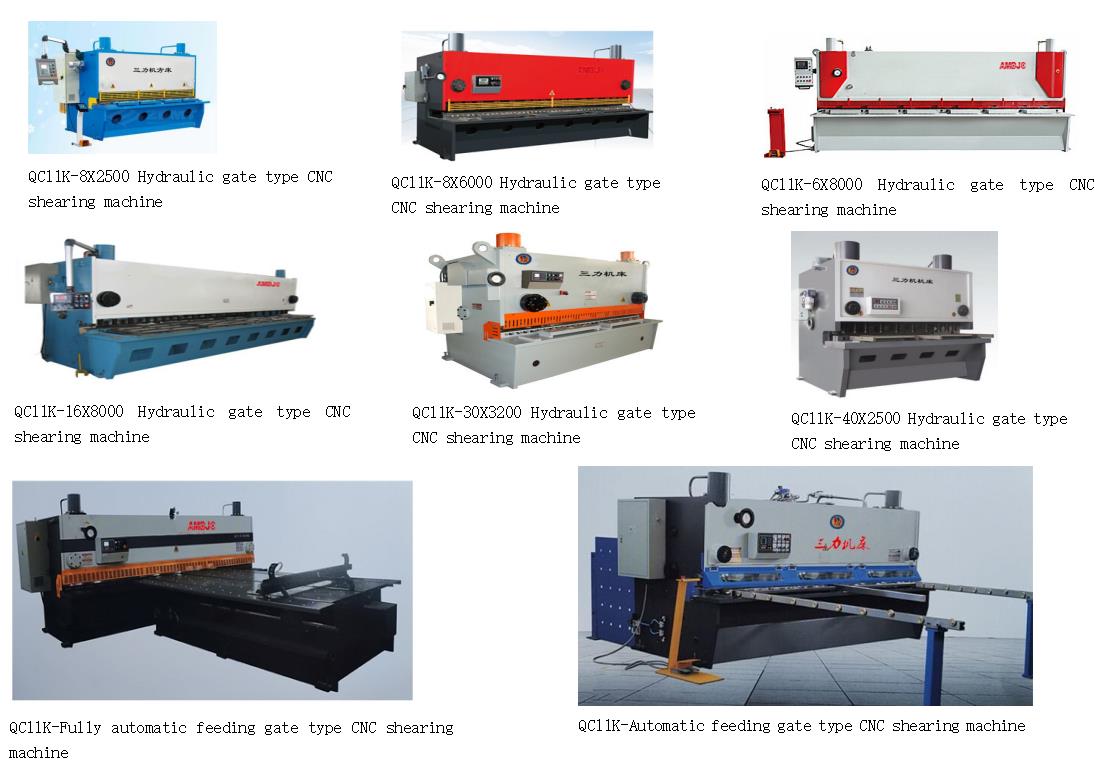

QC11Y/K Hydraulic Cartridge Digital Readout (CNC) Plate Shear

Send Email

　　1. Adopting a fully welded steel plate structure, vibration eliminates stress, and has good rigidity and stability. 2. Adopting ball screw and linear guide, servo control, high positioning accuracy.

　　3. The serial oil cylinder ensures that the cutting angle of the machine tool does not change during cutting.

　　4. The accumulator returns smoothly and quickly.

　　5. Automatic adjustment of blade clearance, accurate, fast, and convenient.

　　6. The cutting angle can be adjusted to reduce the distortion and deformation of the sheet metal.

　　7. Electric rear gear shift and position display, convenient and accurate.

　　8. Roller type workbench reduces sheet metal scratches and reduces friction.

　　9. E21S or numerical control systems such as DA41, DA52S, DAC316S, DAC360S, etc.

　　Technical parameters of QC11K hydraulic gate type CNC shearing machine

model	Can be cut Plate thickness (mm)	Can be cut Board width (mm)	Throat and mouth depth (mm)	Rear blocking material distance (mm)	shear angle	trip frequency (min-1)	electric machinery power （KW）	External dimensions（mm）	weight(T)
6×2500	6	2500	80	600	0.5-1.3	14	7.5	3100×1725×1960	5.3
6×3200	6	3200	80	600	0.5-1.3	12	7.5	3650×1750×1980	6.5
6×4000	6	4000	80	600	0.5-1.3	10	7.5	4650×1780×2075	7.5
6×5000	6	5000	80	600	0.5-1.3	8	7.5	5650×1830×2250	10.5
6×6000	6	6000	80	600	0.5-1.3	8	7.5	6650×1890×2380	15.2
8×2500	8	2500	80	600	0.5-1.3	14	7.5	3100×1725×1960	6
8×3200	8	3200	80	600	0.5-1.3	12	7.5	3850×1750×1980	6.8
8×4000	8	4000	80	600	0.5-1.3	10	7.5	4650×1850×2075	8.5
8×5000	8	5000	80	600	0.5-2	7	15	5850×2000×2500	12.5
8×6000	8	6000	100	600	0.5-2	7	15	6805×2115×2715	19.8
10×2500	10	2500	120	600	0.5-2.3	10	15	3195×1800×2210	8.2
10×3200	10	3200	120	600	0.5-2.3	8	15	3895×1800×2240	9.15
10×4000	10	4000	120	600	0.5-2.3	6	15	1695×1930×2275	11
10×5000	10	5000	120	600	0.5-2.3	5	15	5905×2115×2715	16
10×6000	10	6000	120	600	0.5-2.3	5	15	6905×2215×2800	22
12×2500	12	2500	120	600	0.5-2.3	10	15	3195×1800×2100	8.7
12×3200	12	3200	120	600	0.5-2.3	8	15	3895×1800×2240	9.8
12×4000	12	4000	120	600	0.5-2.3	6	15	4710×1950×2485	13.4
12×12000	12	12000	150	1000	0.5-3	5	75	12780×3800×4400	110
12×6000	12	6000	120	600	0.5-2.3	4	18.5	7000×2300×3100	29
16×2500	16	2500	120	600	0.5-2.3	8	15	3215×1880×2340	9
16×3200	16	3200	120	600	0.5-2.3	7	15	3915×1880×2445	11
16×4000	16	4000	120	600	0.5-2.3	6	15	4715×1950×2590	15
16×5000	16	5000	120	600	0.5-3	5	22	6000×2300×3000	23
16×6000	16	6000	120	600	0.5-3	4	37	7000×2300×3100	36
20×2500	20	2500	120	600	0.5-3	6	22	3215×1890×2465	11
20×3200	20	3200	120	600	0.5-3	5	30	4120×2890×2780	18
20×4000	20	4000	120	600	0.5-3	4	30	4925×2150×2900	21
20×5000	20	5000	120	600	0.5-3	4	37	6000×2300×3050	29
25×2500	25	2500	120	600	0.5-3.5	5	30	3435×2000×2710	15.3
25×3200	25	3200	120	600	0.5-3.5	5	30	4120×2200×3000	21
25×4000	25	4000	120	600	0.5-3.5	3	30	4950×2200×3150	26
30×2500	30	2500	120	600	1-3.5	4	30	3135×2020×2770	17
30×3200	30	3200	120	600	1-3.5	3	37	4200×2300×3200	23
40X2500	40	2500	120	1000	0.5-4	3	55	3300x2180x2730	27

　　Note: If the parameters in this table do not match the machine tool data, the actual data of the machine tool should prevail. Our company reserves the right of final interpretation.
