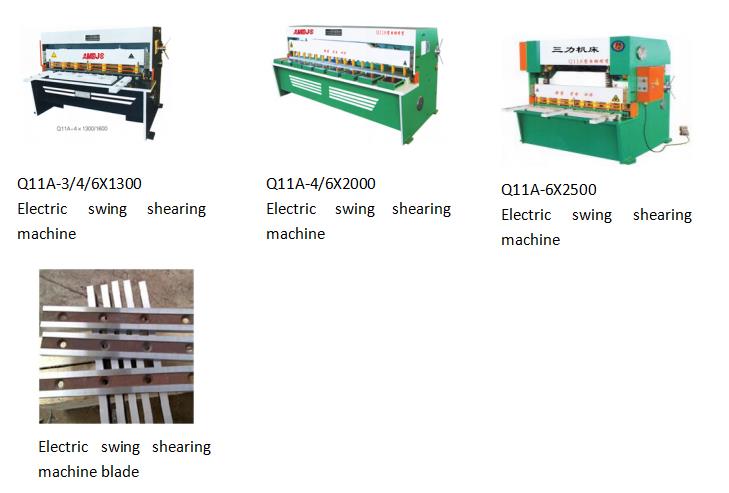

Q11A electric swing shearing machine

Send Email

　　The new generation of energy-saving shearing machines fills the gap in domestic market demand. The electric swing shearing machine is a new generation product developed by our technical department in recent years. Its structure is reasonable. Reliable performance, novel structure, high shear accuracy, it is a green and environmentally friendly product with low noise.

　　Performance characteristics: 1. Energy saving (concluded through comprehensive testing of other Q11 models and Qc12 hydraulic models).

　　2. No mechanical clutch or hydraulic parts, durable and long-lasting

　　3. When cutting, the machine runs, and when not cutting, the entire machine is in a stationary state.

　　4. You can click to cut, back cut, continuous cut, and single cut.

　　5. Blade clearance, quick adjustment of handle.

　　6. The straightness of the blade has a compensation adjustment mechanism.

　　7. Curved arc pendulum shearing, with the blade kept at a minimum value, making the blade less prone to damage

　　8. The whole machine operation is flexible and fast.

　　9. Transmission method: The reducer is driven by an internal cone self-locking motor, and the eccentricity on the main shaft is transmitted up and down through a sprocket chain, thus changing to various shearing actions.

　　Customized according to customer requirements

Model	Maximum shearable board thickness（mm）	Maximum shearable board width（mm）	shear angle	Ultimate shear strength（N）	Number of cuts(次/min)	Maximum travel of rear gear material （mm）	Motor Power （KW）	reducer	Machine dimensions（mm）	machine weight（kg）
4×1300	4	1300	1.3	≤450	28	400	4.5	XLE7	1900×1100×1300	1300
4×1600	4	1600	1.3	≤450	28	400	4.5	XLE7	2200×1100×1300	1600
4×2000	4	2000	1.3	≤450	22	400	5.5	XLE7	2700×1500×1600	2100
4×2500	4	2500	1.3	≤450	22	500	5.5	XLE7	3200×1250×1400	2800
4×3200	4	3200	1.3	≤450	18	500	7.5	XLE7	4100×1600×1700	5000
4×4000	4	4000	1.3	≤450	15	500	7.5	XLE7	4900×1600×1900	6000
6×1300	6	1300	1.3	≤450	22	500	7.5	XLE8	2000×1300×1500	2000
6×1600	6	1600	1.3	≤450	22	500	7.5	XLE8	2200×1300×1500	2500
6×2000	6	2000	1.3	≤450	18	500	7.5	XLE8	2900×1500×1600	3500
6×2500	6	2500	1.3	≤450	22	500	7.5	XLE8	3300×1500×1600	4000
6×3200	6	3200	1.3	≤450	18	500	7.5	XLE8	4100×1600×1800	6000
6×4000	6	4000	1.3	≤450	15	500	11	XLE8	4900×1600×1900	7500
8×1300	8	1300	1.3	≤450	18	500	11	XLE9	2000×1400×1600	3000
8×1600	8	1600	1.3	≤450	18	500	11	XLE9	2300×1400×1700	3500
8×2000	8	2000	1.3	≤450	18	500	11	XLE9	2900×1600×1800	4000
8×2500	8	2500	1.3	≤450	16	600	13	XLE9	3400×1800×2000	6000
