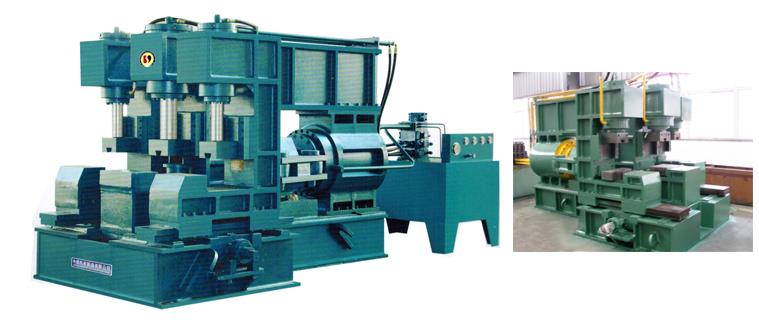

QCWL COLD-FRAME BENDER
Send Email
Performance characteristics:
This machine has a reasonable structure, simple operation, and high processing accuracy. All indicators of the machine have been strictly tested, and its bending forming accuracy, flatness, and indentation have excellent performance.
This machine integrates advanced process technology, measurement technology, modern information technology, and control technology. The continuous innovation of key core technologies fully meets the requirements of information technology development in the shipbuilding industry.
The QCWL frame cold bending machine is designed specifically for processing marine profiles. It can complete the horizontal and vertical bending and straightening of profiles in one go. The rib cold bending machine is a 4-way bending and straightening bending machine* Can bend flat steel, flat steel, T-shaped steel, and angle steel; Compact integrated design including hydraulic operation; When bending, such as S-shaped profiles, including straightening, there is no need to flip.
Main technical parameters of QCWL frame cold bending machine
project | 單位 | QCWL-80 | QCWL-160 | QCWL-250 | QCWL-300 | QCWL-400 | ||
Maximum horizontal pushing and bending force | KN | 800 | 1600 | 2500 | 3000 | 4000 | ||
Bending pivot distance | mm | 600-1000 | 800-1120 | 1000-1400 | 1150-1600 | 1400-2000 | ||
Maximum clamping force of the middle rack | KN | 300 | 600 | 750 | 750 | 1000 | ||
Maximum clamping force of side frame | KN | 200 | 600 | 400 | 400 | 600 | ||
Stroke | mm | ±160 | ±180 | ±200 | ±220 | ±240 | ||
Horizontal bending speed | mm/s | 7 | 7 | 7 | 7 | 7 | ||
Ball flat steel | mm | 120 | 270 | 340 | 380 | 120-480 | ||
Angle steel | mm | 80 | 180 | 270 | 380 | 120-450 | ||
minimum bend radius | mm | 10×Height of profile web plate | ||||||
Maximum working oil pressure | mpa | 25 | 25 | 25 | 25 | 25 | ||
power | KW | 7.5 | 15 | 22 | 22 | 30 | ||
Note: If the parameters in this table do not match the machine tool data, the actual machine tool data shall prevail. Our company reserves the right to final interpretation.
