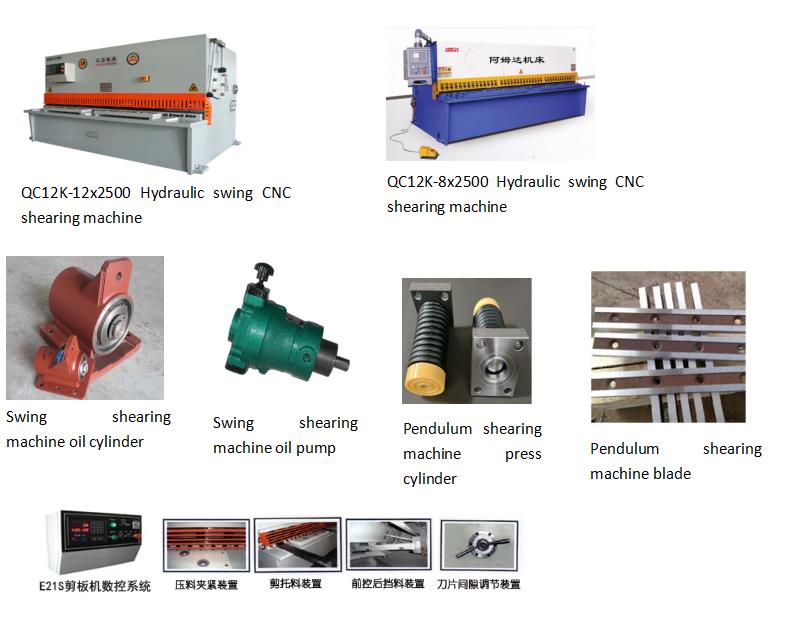

QC12K Hydraulic Swing-type CNC Shearing Machine

Send Email

　　Performance Characteristics:

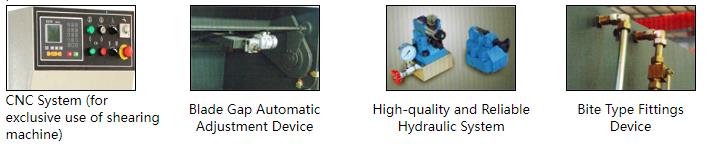

　　Adopt welding structure with plate steel, hydraulic transmission, accumulator return, easy to operate, reliable performance and good-looking appearance. Main engine equipped with e21s CNC system for the exclusive use of shearing machine.

　　Blade gap adjustment has indicator, adjustment light and fast.

　　There is lighting alignment device, shearing stroke control device, adjustment convenient and quick.

　　Rolling ball retainer, to reduce sheet scratch and frictional resistance.

　　Real-time display of back gauge positioning.

　　Multi-step programming, continuous tracking of automatic running of back gauge to realize automatic adjustment of back gauge position.

　　Shearing counting function, real-time display of shearing times, power off memory of the program and parameters of back gauge position.

　　Adopt imported rolling snail and linear guideway, to ensure positioning accuracy to realize higher machinery processing precision.

　　Main Technical Parameters of QC12K Hydraulic Swing-type CNC Shearing Machine

Product Specifications	Overall Dimensions (mm)	Shearing Thickness (mm)	Shearing Width (mm)	Plate Intensity (mpa)	Shearing Inclination	Slide Strokes Per Minute	Back Gauge Distance (mm)	Motor Power (kw)	Weight (T)
4×2500	2990×1650×1620	4	2500	≤450	1.50	18	500	5.5	5.2
4×3200	3990×1650×1620	4	3200	≤450	1.50	14	500	5.5	6
4×4000	4700×1900×1800	4	4000	≤450	1.50	12	500	7.5	7.9
4×5000	5700×2100×2200	4	5000	≤450	1.50	10	800	7.5	13.5
4×6000	6700×2200×2310	4	6000	≤450	1.50	8	800	7.5	16
4×7000	7680×2600×2800	4	7000	≤450	1.50	6	800	11	25
6×2500	3200×1700×1700	6	2500	≤450	1.50	16	500	7.5	5.5
6×3200	3900×1700×1700	6	3200	≤450	1.50	14	500	7.5	6.5
6×4000	4700×1900×1700	6	4000	≤450	1.50	12	500	7.5	8.5
6×5000	5700×2100×2100	6	5000	≤450	1.50	10	800	11	16.8
6×6000	6700×2200×2200	6	6000	≤450	1.50	8	800	11	20
6×7000	7680×2800×2900	6	7000	≤450	1.50	6	500	18.5	29
8×2500	3200×1700×1700	8	2500	≤450	1.50	14	500	7.5	6.8
8×3200	3900×1700×1700	8	3200	≤450	1.50	12	500	11	7.5
8×4000	4700×1800×1700	8	4000	≤450	1.50	10	500	11	9.2
8×5000	5700×2250×2300	8	5000	≤450	1.50	8	800	15	18.5
8×6000	6700×2400×2300	8	6000	≤450	1.50	6	800	15	23
10×2000	2680×1800×1850	10	2000	≤450	1.50	14	500	13	7
10×2500	3200×1800×1700	10	2500	≤450	1.50	12	500	15	7.5
10×3200	3900×2000×1900	10	3200	≤450	1.50	10	500	18.5	8.5
10×4000	4700×2200×2100	10	4000	≤450	1.50	8	800	18.5	10.5
10×5000	5700×2200×2200	10	5000	≤450	1.50	6	800	18.5	22
10×6000	6700×2500×2450	10	6000	≤450	1.50	6	800	18.5	26
12×2500	3200×2150×2200	12	2500	≤450	1.40	11	600	18.5	10.5
12×3200	3900×2200×2300	12	3200	≤450	1.40	10	600	18.5	11.6
12×4000	4700×2200×2300	12	4000	≤450	1.75	8	800	18.5	14
12×5000	5800×2600×2800	12	5000	≤450	1.75	8	800	22	23
12×6000	6700×2700×2750	12	6000	≤450	1.75	5	800	30	33
12×8000	9100×3400×2900	12	8000	≤450	1.75	5	800	37	55
16×2500	3200×2400×2100	16	2500	≤450	2.50	8	600	18.5	12.5
16×3200	3900×2400×2100	16	3200	≤450	2.50	7	600	18.5	14.5
16×4000	4700×2500×2300	16	4000	≤450	2.50	6	600	22	18.5
16×6000	6700×3300×2350	16	6000	≤450	2.50	6	800	37	36
20×2000	2700×2100×2350	20	2000	≤450	2.50	6	800	30	13.6
20×2500	3200×2100×2600	20	2500	≤450	2.50	6	800	37	17
20×3200	3900×2350×2750	20	3200	≤450	2.50	5	800	37	20
20×4000	4800×2400×2750	20	4000	≤450	2.50	4	800	37	24
20×6000	6700×3200×2860	20	6000	≤450	2.50	4	800	37	44
25×2500	3380×2580×2800	25	2500	≤450	3	5	800	37	21
25×3200	4180×2800×3100	25	3200	≤450	3	4	800	37	24
25×6000	6700×3400×2860	25	6000	≤450	2.50	4	800	37	50
30×2500	3650×3000×2850	30	2500	≤450	2.50	5	1000	45	27
30×3200	4350×3050×2900	30	3200	≤450	3.50	4	1000	45	33
30×4000	5100×3100×3200	30	4000	≤450	3.50	3	1000	55	41
